SDL Series

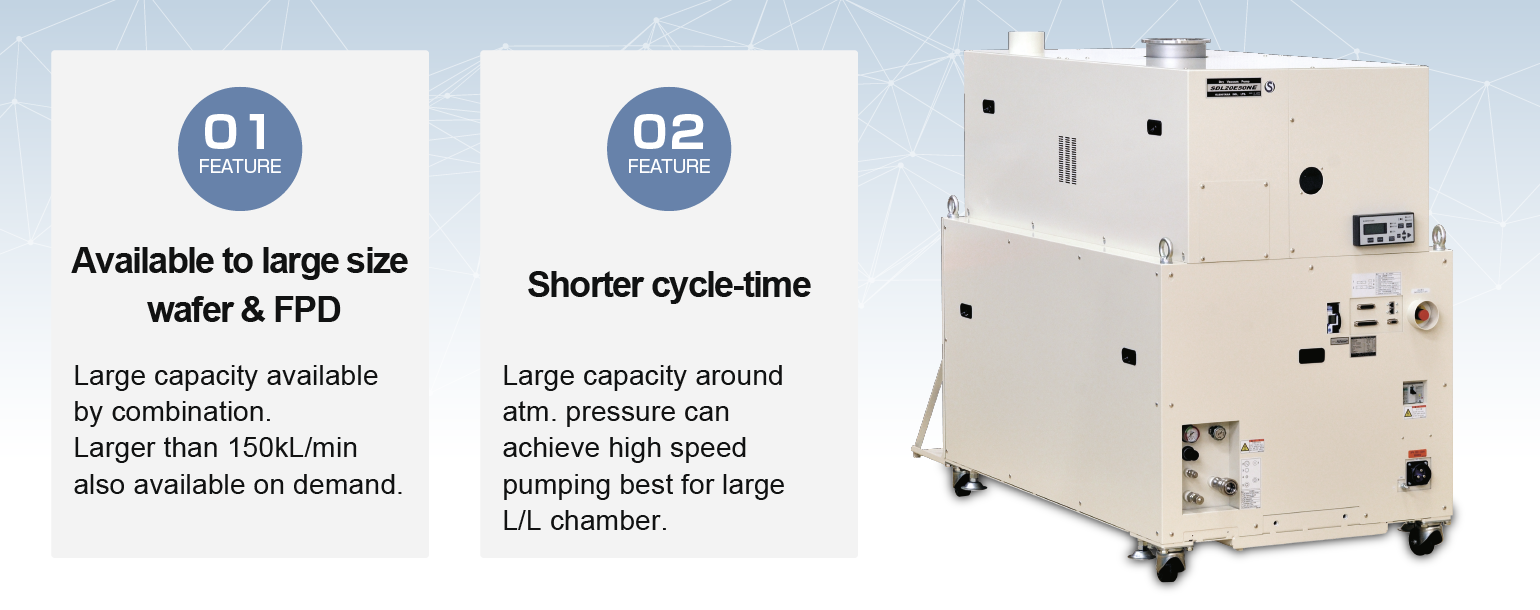

Available to large size wafer & FPD. Large capacity available by combination. Larger than 150kL/min also available on demand. Shorter cycle-time. Large capacity around atm. pressure can achieve high speed pumping best for large L/L chamber.

Pumps for solvent evacuation are also lined-up

Major Products

Spec. / ProductsSDL12E50/60SDL20E60SDL36E60
Max. pumping speed [L/min] *125,00040,00060,000
Ultimate pressure [Pa] *10.8
Supply voltage (50/60Hz)3Phase AC200~220V, 380~480V
Dimensions [mm] L×W×H1020×520×10501370×850×1295
Mass [kg]645800920

*1) Without N2 purge.
* Contact us about international standard compliance. Spec. & name of products are subject to change without prior notice.

S-P Curve

S-P Curve

* S-P curves vary by combination.

  1. Because we are constantly working to improve performance and upgrade our products, specifications and diagrammatic representations in this catalog may change without notice.
  2. Products displayed in this catalog must be approved for export in accordance with the Foreign Exchange and Foreign Trade Control Act. Before placing an export order, please contact our Business Department.
